제품군-단백질, 지방, 섬유분석기

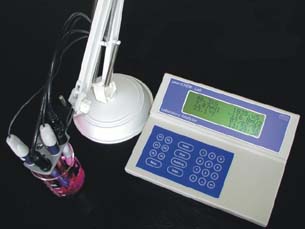

	smartCHEM-LAB Multi-Parameter Laboratory Analyser

			용존산소, 전도도, 염분, pH, 온도,시간,날짜 동시표시 사용간편 날짜시계 240 x 64 mm 의 큰 화면 1,489개의 Data 저장 가능 자동 보정 기능

	Specifications
	*Dissolved Oxygen* Ranges ED1 : 0.00 to 20.00 ppM 20.0 to 40.0 ppM 0.0 to 250.0 % Sat'n 250 to 450 % Sat'n 0.0 to 50.0 % Gaseous 50 to 100 % Gaseous YSI : 0.00 to 25.00 ppM 25.0 to 40.0 ppM 0.0 to 300.0 % Sat'n 300 to 450 % Sat'n 0.0 to 60.0 % Gaseous 60 to 100 % Gaseous Resolution : 0.01 & 1 ppM 0.1 & 1 % Saturation 0.1 & 1 % Gaseous Accuracy : +/-0.2 % of full scale of selected ppM range +/-0.3 % Saturation +/-0.1 % Gaseous *Conductivity* *TDS* *Note* *Dissolved Oxygen, Conductivity, and TDS ranges are automatically selected. Exact auto-range points are subject to sensor performance.* *Specific Ions* Ranges : Auto-ranging in units of ppM, ppK, % and Exponential Notation Resolution : User selectable for 3 significant digits, 2 significant digits or Auto-rounding Accuracy : +/-Least significant digit pH Ranges : 0.000 to 14.000 pH 0.00 to 14.00 pH Resolution : 0.001 pH 0.01 pH Accuracy : +/-0.002 pH +/-0.01 pH *Millivolts & Relative Millivolts* Range : 0 to +/-400.0 and 0 to +/-1500 mV (auto-ranging) Resolution : 0.1 mV 1 mV Accuracy : +/-0.15 mV +/-1 mV		*Temperature* Range : -10.0 to 120.0 ^OC Resolution : 0.1 ^OC Accuracy : +/-0.2 ^OC *Temperature Compensation* 0 to 100 ^OC, automatic or manual. *Calibration* Automatic calibration for all parameters. User can define standards where applicable. *Memory* 1489 readings including date and time. *Automatic Datalogging* User-set for one reading every 2 to 90 seconds, minutes or hours. *RS232 Port* 1200, 9600, 19200 and 38400 Baud. 8 Bits, No Parity, 1 Stop Bit, XON/XOFF Protocol *Recorder Output (optional)* Max 0 to 2000mV output for any one parameter at one time. Output impedance approx 1000 Ohms. Resolution approx 2 mV. *Clock* 24 Hour Calendar clock. Displays date, month, year, hours, minutes, seconds. *Good Laboratory Practices* Date, time and value of last successful calibration for each parameter are stored. This information can be recalled or sent to the RS232 port at any time. Calibration Alarm Calibration Alarm can be activated for parameter of user's choice. Calibration Alarm can be set to Daily, Weekly, 2 Weekly or 4 Weekly. *Display* 240 x 64 dot graphic LCD with large, bold digits, user-friendly menu system and full-text help and error messages. *Enclosure* Tough, high impact ABS. Splash resistant one-piece lid. *Dimensions* 240 x 180 x 105 mm *Mass* Instrument only : Approx 1.0 kg Full Kit : Approx 5.0 kg *Environment* Temperature : 5 to 45 ^OC Humidity : 0 to 90% R.H. *Power* 12V DC via AC/DC adaptor. AC/DC adaptor to suit specified country is supplied.
	Ordering Information
	Part No smartCHEM-LAB Meter.....126124 *Kit Includes* k=1/ATC Cond/TDS Sensor.122230 Plastic body pH Sensor..121207 Temperature/ATC Sensor..121248 pH6.88 Buffer, 200mL....121306 pH4.00 Buffer, 200mL....121381 2.76mS Cond Std, 200mL..122306 2.00ppK TDS Std, 200mL..122307 AC/DC Power Adaptor.....130037 smartCHEM-LAB Handbook..130050 *Optional Sensors* ED1 DO₂, NO Cable.......123400 1m Cable for ED1........123228 YSI Non-stirring BOD....123214 YSI Self-stirring BOD...123213 YSI Field DO₂ Sensor....123204 1M Cable for 123204.....123212 k=10/ATC/Temp Sensor....122234 k=0.1/ATC/Temp Sensor...122232 Plastic body ORP Sensor.121262 IJ pH, 1m...............121234 IJ ORP, 1m..............121263 (for meat, dairy, slurries etc) Double Platinum.........122209 Electrode for Karl Fischer titrations		*Options* Part No RS232 Cable.............130041 Serial to USB Adaptor...130087 Communication Software for Windows.............130086 Recorder Output.........130028 (includes cable) Flexible Arm Electrode Holder..................130088 4.5V Output Cable for Self-stirring BOD.......123311 *Spares* Recorder Cable..........130021 RS232 PLUS Recorder Cable...................130030
