AW-Value Measuring water activity & Instrument material moisture
RM-31(-TC), AQS-31(-TC)
특징 및 소개내용
- 세계인이 가장 선호하는
NAGY의 AW-Meter 0.001의 정밀도에 도전합니다.
*Temp Controller 기능 장착
0.1℃의 온도 정밀성으로 세계 최고의
정확한 AW Value를 측정할 수 있습니다.
센서 교체가 용이하여 유지 및 보수관리 편리함
스펙 및 상세내용
Specifications
  RM-31
RM-31-TC AQS-31 AQS-31-TC
Measuring range 0.05 ... 0.99 0.05 ... 0.99
Accuracy 0.005 aw 0.01 aw
Reproducibility 0.003 aw 0.003 aw
Resolution 0.001 aw 0.001 aw
Temperature control - 15.0...35.0℃ - 15.0...35.0℃
Accuracy - 0.1℃ - 0.1℃
Cooling & Heating system - Built-in - Built-in
Duration of meas 5 to 8min 5 to 10min
Calibration Seldom Seldom
Advantages Fast & accurate Fast
Measuring method 3 Steps;
① Rough ② Middle ③ High accuracy
3 Steps;
① Rough ② Middle ③ High accuracy
Detecting :
- Time
- Delta value
- Dew point
- Rel. Humidity
Yes Yes
Memory 100 Data 100 Data
Power 220V/ 60Hz
Dimension 30x30x19cm (WxDxH)

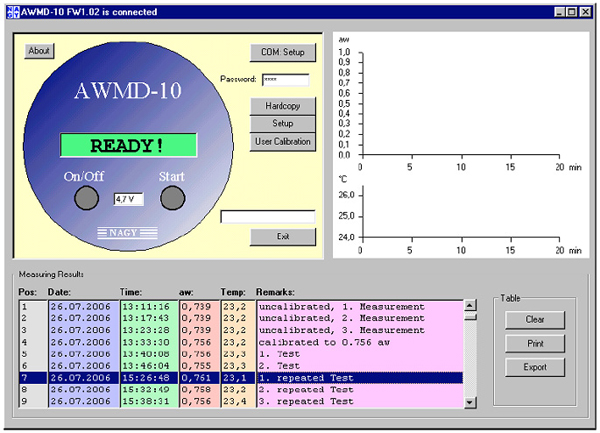

AWMD-10
특징 및 소개내용
-
스펙 및 상세내용
Specifications
Measuring range 0.05 ... 0.99
Accuracy 0.02 aw
Reproducibility 0.005 aw
Resolution 0.001 aw
Temperature control -
Accuracy -
Cooling & Heating system -
Duration of meas 20 - 30 min
Calibration Often
Advantages Favorable
Measuring method
Power 220V/ 60Hz



Roremeter/Aquaspector
FATT-1
특징 및 소개내용
-
스펙 및 상세내용
Specifications
Measuring range 0.40 ... 1.00
Accuracy 0.02 aw
Reproducibility 0.005 aw
Resolution 0.001 aw
Temperature control -
Accuracy -
Cooling & Heating system -
Duration of meas Continuously
Calibration Seldom
Advantages On-line measuring
Measuring method + PC
Power 220V/ 60Hz





AWK-40
특징 및 소개내용
- Freezing Point 측정으로aw 값을 분석하는 세계 최초의 Method, 정밀성, 재현성, 안정성 및 신속한 측정을 자신합니다 !
스펙 및 상세내용
How does the AWK-20 measure the aw-value?
AWK-20 aw Meter는 sample의 Freezing Point를 측정, 가장 짧은 시간내에 정확한 Data를 얻을 수 있는 방법으로 세계 특허를 획득한 방법입니다. Test Sample을 Sample 용기에 넣고 Cooling을 시작하면 AWK-20은
시료의 Freezing Point를 정확하게 Detecting하게 됩니다. 이렇게 AWK- 20은 시료의 물리적 특성을 정확하고 신속한 Data로 분석하기 때문에 세계 최고의 제품으로 인정받고 있습니다.

Measuring device
Measured-value display LCD-display, 2 lines of 16 positions each,
8mm high characters
Aw-value-measurement
Mesuring range
Mesuring accuracy
Resolution
Measuring rate
Sample volume

0.8000 ... 0.9999
+/- 0.001
0.0001
2s
ca. 18 ml
Aw-value-measurement
Measuring range
Measuring accuracy
Resolution
Measuring rate

-199.99 ... 0 ... +199.99℃
+/- 0.03℃
0.01℃
2s
Limit switch
Number of limit
Operating differential
Accuracy of switch point
Exits
Making capacity

1
Can be set within the range of the measuring quantity
Fully accurate
Transistor, potential free
50mA, 24V max.
Serial Interface
Analog exit
Accuracy
Resolution
Load resistance
v.24/RS-232C
0 ... 2.0 V (adjustable range)
0.2%
14 bit
500 Ohm min.
Environmental conditions
Operating temperature
Storage temperature
Relative humidity
Power supply
Power consumption
Housing
Dimensions (H×W×D)

0... + 50℃
-40 ... + 85℃
80% max., without thawing
230 Volt, 50/60Hz
Approx. 25VA
Metal housing
135×260×240 mm
Cryostat
Dimensions (H×W×D)
Range of operating
temperature
Power supply

260×280×400 mm

to -35 ... -50℃ approx.
230 Volt, 50/60Hz
