제품군-단백질, 지방, 섬유분석기

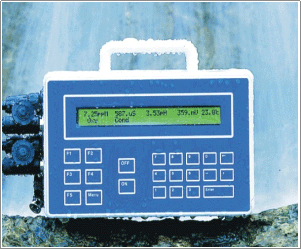

	Field-Lab Analysers for pH, mV, Conductivity, Salinity, Dissolved Oxygen, Turbidity & Temperature

			90FL은 pH, 전도율, 염분, 용존산소, 온도 측정 90FL-MV는 pH, mV, 전도율, 염분, 용존산소, 온도 측정 90FL-T는 pH, 전도율, 염분, 용존산소, 탁도, 온도 측정 자동보정 자동데이터등록 및 컴퓨터연결 가능 AS/NZS/ISO 9001 인증

	Specifications
	pH Ranges : 0.00 to 14.00 pH Resolution : 0.01 pH Accuracy : ±0.01 pH Impedance : > 3×1012 Ohms Asymmetry : ± 1.00 pH Range : 85 to 105% Temperature Compensation : Automatic, 0 to 100 ℃ Calibration : 2 Point automatic pH Buffers : Auto recognition of pH4.00, pH6.88 and pH 9.23 Other buffers can be keyed in at calibration. Millivolts(90FL-MV only) Ranges : 0 to ± 1999 mV Resolution : 1 mV Accuracy : ± 1 mV Conductivity Ranges k=10 Sensor : 0 to 200.0 uS/cm 0 to 2000 uS/cm 0 to 20.00 mS/cm 0 to 200.0 mS/cm k=1 Sensor : 0 to 20.00 uS/cm 0 to 200.0 uS/cm 0 to 2000 uS/cm 0 to 20.00 mS/cm Resolution : 0.05% of full scale of selected range Accuracy : ± 0.5% of full scale of selected range at 25 ℃ Temperature Compensation : All readings automatically normalised to 25 ℃ at ?2.2% /OC. Zero Calibration : Automatic in air. Span Calibration : Automatic to user-defined standard. Salinity Ranges k=10 Sensor : 0 to 100.0 ppm 0 to 1000 ppm 0 to 10.00 ppk 0 to 100.0 ppk k=1 Sensor : 0 to 10.00 ppm 0 to 100.0 ppm 0 to 1000 ppm 0 to 10.00 ppk Resolution : 0.1% of full scale of selected range Accuracy : ± 0.5% of full scale of selected range at 25 ℃ Temperature Compensation : All readings automatically normalised to 25 ℃ at ?2.2% /OC. Zero Calibration : Automatic in air. Span Calibration : Automatic to userdefined standard. Dissolved Oxygen Ranges : 0 to 30.00 ppm (mg/l) 0 to 300.0 %Saturation Resolution : 0.01 ppm (mg/l) 0.1 %Saturation Accuracy : ± 0.02 ppm (mg/l) ± 0.2 %Saturation Temperature Compensation : Automatic for solubility(ppm only) and membrane permeability. Zero Calibration : Automatic at less than 5%. Span Calibration : Automatic in air.		Turbidity(90FL-T only) Ranges : 0 to 1000 NTU Linearity : 3% Temperature Coefficient : < -0.3% /℃, 0 to 40 ℃ Zero Calibration : Automatic in distilled water. Span Calibration : Automatic to user defined standard. Temperature Ranges : -10.0 to 110.0 ℃ Resolution : 0.1 ℃ Accuracy : ±0.2 ℃ Calibration : Automatic, 1 or 2 point Datalogging All models equipped with standard Notepad function. Automatic datalogging with extended memory optional for 90FL and 90FL-MV and standard for 90FL-T. Standard Memory 90FL : 60 readings(45 with extra data input active). 90FL-MV : 50 readings(40 with extra data input active). 90FL-T : 800 readings(635 with extra data input active). Extended Memory (with Automatic Datalogging option) 90FL : 1980 readings(1508 with extra data input active). 90FL-MV : 1760 readings(1377 with extra data input active). Extra Data Input 2 extra items of data can be input when using the Notepad function. Each item can be a maximum of 4 characters, including a decimal point. Extra Data items are labelled A and B. Automatic Logging All 3 models can be programmed to automatically log from 1 to 288 readings per day. 90FL & 90FL-MV can also be programmed to take readings at up to 12 specific times of the day. 90FL-T can also be programmed to take readings at a preset interval for a preset duration. RS232 Port 8 Bits, No Parity, 1 Stop Bit, XON/OFF Protocol. 300, 1200, 9600 baud available. 2 line x 40 Character alphanumeric LCD shows all readings simultaneously. Keypad 5 Function keys, Menu key, 14 data entry keys, OFF, ON. Dimensions 230×140 ×100 mm Mass Meter only : Approx 1.5kg Full Kit : Approx 5.0kg Environment Temperature : 0 to 45 ℃ Humidity : 0 to 90% R.H. Power 7.2V Rechargeable NiCad Battery any 12V DC supply with recharge the battery.
	Ordering Information
	Part No 90FL…………………………….………….126103 90FL-MV…………………………………130018 90FL-T……………………………………126105 Kit Includes pH6.88 Buffer, 200ml…….……………..121306 pH4.00 Buffer, 200ml…….……………..121381 2.76 mS/cm Cond Std, 1l……………….122305 Battery Charger…………………………..130009 (Supplied to suit country) 90FL Handbook…………………………..130050 (1 Liter Salinity standard to suit k=10 or k=1 salinity sensor is also supplied) Sensors pH, Submersible, 5m……………………111228 ORP, Submersible, 5m....111260 (90FL-MV only) k=10 Cond/Salinity, 5m..122218 k=1 Cond/Salinity, 5m...122196 YSI DO2 Sensor,no cable.123204 5m cable for YSI Sensor.123219 Turbidity Sensor, 5m....125208 (90FL-T only) Temperature Sensor, 5m..124210 (required only if Conductivity sensor is not used)		Part No Options Submersible DO2 Stirrer…..…….……..123306 RS232 Port & Cable……………………..130010 (standard on 90FL-T) Automatic Datalogging, RS232 & cable option…………………………….130011 (standard on 90FL-T) Communication Software for Windows …...…………………………130086 Solar Panel……….………………………..130012 Clip lead for external 12V battery……130013 Hard carry case…………………………..130058 Probe holder for 90FL & 90FL-MV, 5m…………………………….121343 Probe holder, 90FL-T, 5m…………….121345 180NTU Primary Turbidity standard, 1l…………………………………125200 360NTU Secondary Turbidity standard, 1l…………………………………125204
