Conductivity
Ranges
(automatic range selection)
k=0.1 Sensor : 0 to 2.000 uS/cm
0 to 20.00 uS/cm
0 to 200.0 uS/cm
0 to 2000 uS/cm
k=1.0 Sensor : 0 to 20.00 uS/cm
0 to 200.0 uS/cm
0 to 2000 uS/cm
0 to 20.00 mS/cm
k=10 Sensor : 0 to 200.0 uS/cm
0 to 2000 uS/cm
0 to 20.00 mS/cm
0 to 200.0 mS/cm
Resolution
0.05% of selected range
Accuracy
±0.5% of full scale of selected range at 25 ℃
Salinity
Ranges
(automatic range selection)
k=0.1 Sensor : 0 to 1.000 ppm
0 to 10.00 ppm
0 to 100.0 ppm
0 to 1000 ppm
k=1.0 Sensor : 0 to 10.00 ppm
0 to 100.0 ppm
0 to 1000 ppm
0 to 10.00 ppk
k=10 Sensor : 0 to 100.0 ppm
0 to 1000 ppm
0 to 10.00 ppk
0 to 100.0 ppk
Resolution
0.1% of selected range
Accuracy
±0.5% of full scale of selected range at 25 ℃
Temperature
Ranges : -10.0 to 120.0 ℃
Resolution : 0.1 ℃
Accuracy : ±0.2 ℃
|
Temperature Compensation
Automatic, 0 to 100 ℃, via thermistor in
Conductivity sensor.
Automatic Standard Recognition
Conductivity
14.94 uS/cm, 73.9 uS/cm, 150.0 uS/cm,
717.8 uS/cm, 1413 uS/cm, 2760 uS/cm,
6.67 mS/cm, 12.90 mS/cm, 24.82 mS/cm,
58.00 mS/cm, 111.9 mS/cm
TDS
69.5 ppm, 2.00 ppk, 8.00 ppk, 36.0 ppk
Enclosure
Tough, high impact ABS. Splash resistant one-piece
lid.
Display
14.5mm high, 16 character alphanumeric LCD with
full-text messages.
RS232 Output(Optional)
300, 1200 and 9600 Baud.
8 Bits, No Parity, 1 stop Bit, XON/XOFF
Recorder Output(Optional)
0 to 2000mV Output for…
0.00 to 14.00 pH
-1500 to 1500 mV
-10.0 to 120.0 ℃
Output impedance approx 1000 Ohms
Power
12V AC/DC Power Adaptor.
Dimensions
270×210 ×75 mm
Mass
Instrument only : Approx 1.0kg
Full Kit : Approx 2.5kg
Environment
Temperature : 0 to 45 ℃
Humidity : 0 to 90% R.H.
|
| |
Part No
labCHEM-C Kit………………….…..………….121104
Kit Includes
k=1.0/ATC Cond Sensor.….…………..122230
Temperature/ATC Sensor……………..121248
2.76 mS/cm Conductivity
Standard, 200ml………..………………...122306
2.0 ppk TDS Standard, 200ml………...122307
AC/DC Power Adaptor………………….Specify
Country
labCHEM-C Handbook………………………..130050
Optional Sensors
k=10/ATC Cond Sensor………………..122222
k=0.1/ATC Cond Sensor……………….122224
|
Instrument Options
RS232 Serial Interface…..……………..130039
(includes cable)
Recorder Output………………………….130028
(includes cable)
Communication Software
for Windows …...…………………………130086
Flexible Arm Electrode
Holder………………………………………130088
|

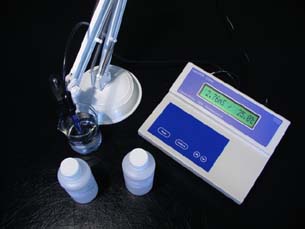

labCHEM-C
Benchtop Conductivity-Salinity-
Conductivity/Salinity,
Temp. 동시 판독
Specifications
