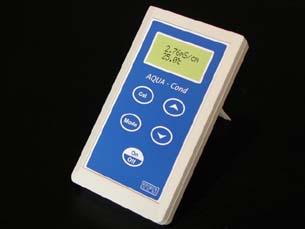

 Aqua-C
Waterproof Conductivity-Salinity-
Temperature Meter |
|
| |
 |
 전도율,
염분, 온도를 이원적으로 표시
사용간편
원터치
보정
얼룩방지
설계
text
prompting/error messages
digit
mode 확장
Fold-out
stand for bench use
Australian
제작
AS/NZS/ISO
9001 인증 |
| |
|
|
|
| |
 Specifications |
| |
Conductivity
Ranges : 5 ranges with auto range selection
k=0.1 : 2.000 uS/cm to 10.00 mS/cm
k=1.0 : 20.00 uS/cm to 100.0 mS/cm
k=10 : 200.0 uS/cm to 2000 mS/cm
Resolution : 0.05% of range
Accuracy : 0.2% of full scale of selected range
TDS
Ranges : 5 ranges with auto range selection
k=0.1 : 1.000 ppm to 5.00 ppk
k=1.0 : 10.00 ppm to 50.0 ppk
k=10 : 100.0 ppm to 500 ppk
Resolution : 0.1% of range
Accuracy : 0.5% of full scale of selected range
Temperature
Ranges : -10.0 to 120.0 ℃
(sensor limit 60 ℃)
Resolution : 0.1 ℃
Accuracy : ±0.2 ℃
Conductivity/TDS Span Range
75% to 133% of nominal k factor
Temperature Compensation
Automatic, 0 to 100 ℃
Mass
Instrument only : Approx 250g
Full Kit : Approx 1.5kg |
Automatic Standards Recognition
Conductivity :
150 uS/cm
1413 uS/cm
2760 uS/cm
58.0 mS/cm
Salinity :
69.5 ppm
2000 ppm
36.0 ppk
Enclosure
Tough, ABS plastic case.
Display
24 Character alphanumeric LCD with full-text
prompts and error messages.
Battery Saver Function
On : Automatically switches off after 5 minutes
of no use.
Off : Unit remains on for continuous use.
Power
9V Alkaline battery for 100+ hours, or NiCad Power
Pack(optional).
Dimensions
158×80 ×31 mm
Environment
Temperature : 0 to 45 ℃
Humidity : 0 to 90% R.H.
|
| |
 Ordering
Information |
| |
Part No
Aqua-C……….…………………………….122162
Kit Includes
k=1.0/ATC/Temp Sensor……………...122201
2.76 mS/cm Std, 200ml…..……………..122306
2.0 ppk Std, 200ml………………………..122307
9V Alkaline Battery………………………130026
WC-84 Handbook………………………..130050
Optional Sensors
k=10/ATC/Temp, Plastic..122219
k=0.1/ATC/Temp, Plastic.122229
k=1.0/ATC/Temp, Glass...122216
k=10/ATC/Temp, Glass....122212
k=0.1/ATC/Temp, Glass...122229
Extended cable..........130040
(order by the metre) |
Part No
Instrument Options
Aluminium Carry Case…...……………..130057
|
