Specific Ions
Ranges
: Auto-ranging in units of
ppM, ppK, % and
Exponential Notation
Resolution : User selectable
for
3 significant digits,
2 significant digits or
Auto-rounding
Accuracy : +/-Least
significant
digit
pH
Ranges
: 0.000 to 14.000 pH
0.00 to 14.00 pH
Resolution : 0.001 pH
0.01 pH
Accuracy : +/-0.002
pH
+/-0.01 pH
Millivolts & Relative Millivolts
Range
: 0 to +/-400.0 and
0 to +/-1500 mV
(auto-ranging)
Resolution : 0.1 mV
1 mV
Accuracy : +/-0.15
mV
+/-1 mV
Temperature
Range
: -10.0 to 120.0 OC
Resolution : 0.1 OC
Accuracy : +/-0.2 OC
Temperature Compensation
0 to 100 OC,
automatic or manual.
Calibration
Automatic calibration for all
parameters.
User can define standards where
applicable.
Memory
2730 readings including date
and time.
Automatic Datalogging
User-set for one reading every
2 to 90 seconds, minutes or hours.
RS232 Port
1200, 9600, 19200 and 38400
Baud.
8 Bits, No Parity, 1 Stop Bit,
XON/XOFF Protocol
|
Recorder Output (optional)
Max 0 to 2000mV output for any
one parameter at one time.
Output impedance approx 1000
Ohms.
Resolution approx 2 mV.
Clock
24 Hour Calendar clock.
Displays date, month, year,
hours, minutes, seconds.
Good Laboratory Practices
Date, time and value of last
successful calibration for each parameter are stored. This information can
be recalled or sent to the RS232 port at any time.
Calibration Alarm
Calibration Alarm can be
activated for parameter of user's choice. Calibration Alarm can be set to
Daily, Weekly, 2 Weekly or 4 Weekly.
Display
240 x 64 dot graphic LCD with
large, bold digits, user-friendly menu system and full-text help and error
messages.
Enclosure
Tough, high impact ABS. Splash
resistant one-piece lid.
Dimensions
240 x 180 x 105 mm
Mass
Instrument only : Approx 0.8 kg
Full Kit
: Approx 3.0 kg
Environment
Temperature : 5 to 45 OC
Humidity : 0
to 90% R.H.
Power
12V DC via AC/DC adaptor.
AC/DC adaptor to suit specified
country is supplied.
|

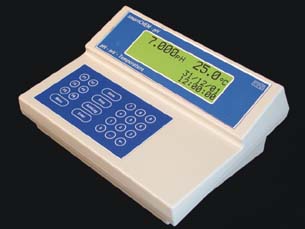

smartCHEM-Ion
Laboratory
이온,
pH, 온도,시간,날짜를 동시에 표시
