Real - Time Dust Monitor

(휴대용 분진 측정기)


Model : HAZ-DUST II 1002



 ■ 특 징

-

휴대가 간편함

-

소형화된 센서 디자인작동이 쉬움

-

Data 수집이 가능

-

화면 표시 기능

-

Data 보호코드 내장

-

Alarm 기호 표시

-

RFI / EMI  검정 필

SPECIFICATIONS

Personal Dust
Monitor
Display : backlit
LCD, 4-line, 15
Character
alphanumeric
Calibration :
NIOSH 0600 using
ARD test dust
Sensing Range :
0.01 - 2.00 mg/m3
Particle Size Range :
0.01 - 10 micro-m
Precision : +/-
0.02mg/m3
Accuracy : +/-
10% to NIOSH
#0600
Power : Ni-Cd
rechargeable
battery
Operating Time :
>8 hours
Charging Time :
10 - 12 hours
Digital output :
RS-232
Humidity : 95%
non-condensing
Dimensions :
9.75"x 3.5"x 2.45"
Weight : 2.75 lbs

Display : Alphanumeric LCD - 4 line, 20
character mg/m3 concentration reading
Operation : Three-key splash proof
membrane switch - menu - driven
Calibration : NIOSH gravimetric using
ARD
Sampling Flow Rate : 1.0 - 3.0
liters / minute
Filter Cassette : 37 mm disposable
Alarm Output : adjustable intensity ;
90dB @ 3ft
Recording Time : 1 second to 12 hours
Sampling Rate : 1 or 2 second per
sample
Data Storage : 21,500 data points
Security Code : 4 digit combination
Memory & Time Storage : >10 years
Real-time clock & data display
Data Display : concentration in mg/m3
& TWA, MAX, MIN, STEL, Time
Digital Output : RS - 232
Operating Temperature : 0 - 50 ℃
Storage Temperature : -20 - 60 ℃
HAZCOMM Software : Windows driven
Power : Rechargeable NiCd Battery
Operating Time : >8 hours Battery
Charge Time : 12 - 15 hours
Humidity : 95% non-condensing
Dimensions : 9.75 x 3.5 x 2.45 inches
Sensor Dimensions : 1.75 x 1.5 inches
Weight : 2.75 lbs

 ■ 특 징

-

적외선 광산란법 측정기

-

오염도를 mg/m3로 표시

-

사용이 간편하고 고감도의 정밀도 (0.01mg/m3)

-

Low Battery표시

-

Data logger 연결이 가능

-

습도 측정 가능


Accessories


TP-101 Tripod Stand
CS-101 Calibration
Standard
ZA-101 Zeroing
Assembly
KK-101 Cleaning Kit
SS-101 Shoulder Strap

SPECIFICATIONS

Data logger Model : DL - 102

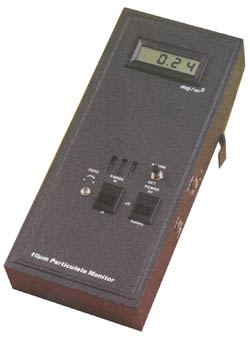

HD-1000 10 micro-m
Particulate Monitor
Display : Lcd 3.5 digits
mg/m3 concentration
reading
Calibration : NIOSH
0600 using ARD test
dust
Sensing Range : 0.01 -
200 mg / m3
Particle Size Range :
0.01-50 micro-m
Precision : + / -
0.2 mg/m3
Accuracy : + / - 10% to
NIOSH #0600
Power : Ni-Cad
rechargeable battery
Operating Time : >8
hours
Charging Time : 10 -1 2
hours
Signal output : 0 - 2V
Humidity : 95% non-
condensing
Dimension : 9"x 4"x 2"
Weight : 3 lbs

Single - channel, 3-keys
programmable
operation. Real-time
clock & display with
on-screen calculation
of statistics.
Recording time : 1 min
to 12 hours
Sampling Rate : 1 or 2
sec / sample
Display : 4/20
alphanumeric LCD on
screen data display,
TWA, STEL, max/min
concentration,
start/stop time
Memory : 21,500 data
points
Output : RS-232C (9600 baud rate)
Power : 7.2V Nicad
Operating Time : 12
hours
Dimensions :
7.0"x 3.5"x 2.50"
Weight : 1 lb
